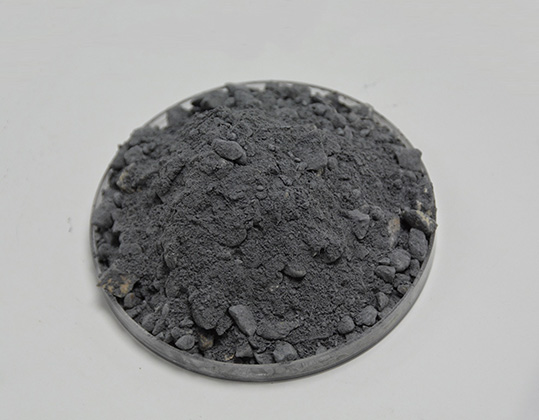

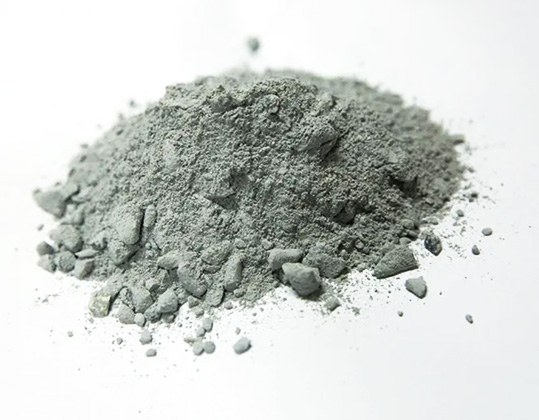

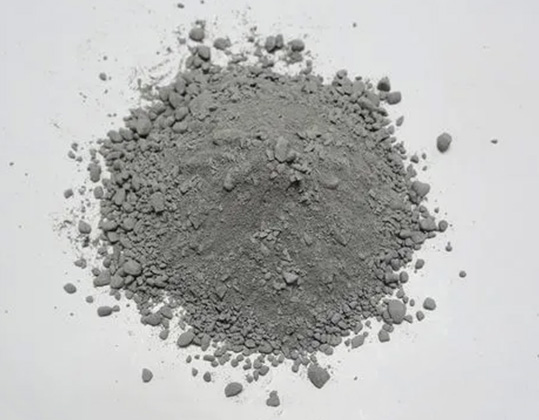

Silicon Carbide Castables

Silicon carbide castables are mainly 75~98% of silicon + carbide as the main raw material, adding high-efficiency water reducer and ultrafine powder, with pure calcium aluminate cement as the binder, thus made into amorphous refractory material. which is the first choice for non-ferrous metal melting furnaces, blast furnace ironmaking grooves, cupolas, and other high-temperature record materials. The performance indicators of silicon carbide castables are similar to silicon carbide bricks and can be used for the on-site casting of kilns.

Introduction of Silicon Carbide Castables

Silicon carbide castables are mainly 75~98% of silicon + carbide as the main raw material, adding high-efficiency water reducer and ultrafine powder, with pure calcium aluminate cement as the binder, thus made into amorphous refractory material. which is the first choice for non-ferrous metal melting furnaces, blast furnace ironmaking grooves, cupolas, and other high-temperature record materials. The performance indicators of silicon carbide castables are similar to silicon carbide bricks and can be used for the on-site casting of kilns. During construction, it can also be made into refractory prefabricated parts and prefabricated blocks, which can be used directly after drying and moisture.

Silicon carbide castables can greatly reduce the number of skidding with the advantages of fast heat conduction, compact volume, good oxidation resistance, good wear resistance, strong resistance to erosion, erosion, permeability, and so on. The service temperature of silicon carbide castables is generally 1500-1700℃.

Packing of Silicon Carbide Castables

Plastic bag(25kg), Kraft bag (25 kg), Plastic Ton bag(1 ton);

1 ton on the pallet with plastic film & bundle belts.

Per your requests

Features of Silicon Carbide Castables

The biggest advantage of silicon carbide refractory castables is that it has high thermal conductivity, low thermal expansion, and does not react with slag. It has been used as a slag reaction and high-temperature spalling kiln parts very early.

1. Silicon carbide castables have high thermal conductivity.

2. Silicon carbide castables have good resistance to flaking.

3. Silicon carbide castables have resistant to erosion and erosion.

4. Silicon carbide castables have a small thermal expansion coefficient.

5. Silicon carbide castables have high-temperature environment wear resistance.

Application of Silicon Carbide Castables

It is widely used in kilns, furnaces, and thermal equipment of metallurgy, petroleum industry, chemical industry, building material, machinery, etc.

Cr2O3 in chrome corundum castables has very low solubility in molten slag, as Cr2O3 can enhance the viscosity of molten slag, then the dissolution erosion rate of chrome corundum castables is reduced. So chrome corundum castables are important refractory materials used for oxidizing atmosphere-melting furnace working lining.

Characteristics of Silicon Carbide Castables

  • The more SIC content, the better the anti-skinning function of the refractory material, and the better the alkali resistance.

  • Silicon carbide castables have high thermal conductivity and a small thermal expansion coefficient. SIC refractory castables are difficult to penetrate with molten steel and slag. High-temperature oxidation is a protective oxidation, and oxygen resistance is significantly better than carbon materials.

  • Based on the SIC body, silicon carbide is wear-resistant and silicon carbide has high hardness.

Chemical & Physical Index

Item / Model XHJSCC45 XHJSCC58 XHJSCC78 XHJSCC85
Max working temp.(℃) 1450 1550 1650 1700
Bulk density after drying at 110℃, g/cm3 2.5 2.6 2.7 2.7
Chemical analysis, % Al2O3 30 22 11 9
SiC+C≥ 45 58 78 83
Cold bending strength (Mpa) 110℃*24H 10 12 12 13
1100℃*3H 13 15 15 16
Cold crushing strength(Mpa) 110℃*24H 60 65 70 75
1100℃*3H 80 80 85 90
Linear change after heating, % 1000℃*3H -0.3 -0.2 -0.1 -0.1
1400℃*3H -0.2 -0.1 -0.1 -0.1
Thermal conductivity, kcal/mh, ℃ 7 8 11 11.5
Water Addition 8-9% 7-8% 6-7% 6-7%
Construction method Vibration Vibration Vibration Vibration
Application  Cement kiln, the roof of electric arc furnace Garbage Nonferrous Metal Furnaces, Cement kilns & other Industrial Furnaces
incinerator
